Power meter+Vfl+Lan Tester 5103 model

Name: Power meter+Vfl+Lan Tester 5103 model
Brand: FIBROS TECHNOLOGY
Price: 1300 INR
Availability: InStock

1300 INR/Piece

Get a Price/Quote

Product Details:

Mounting Type Handheld
Operating Voltage 4.5V DC (3xAAA batteries)
Equipment Type Optical Power Meter, Visual Fault Locator, LAN Tester 3-in-1
Display Type LCD Backlit Display
Temperature -10C ~ +60C operating
Humidity 0% ~ 70% RH non-condensing
Response Time <10 ms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Power meter+Vfl+Lan Tester 5103 model Price And Quantity

Minimum Order Quantity 10 Piece
Price 1300 INR/Piece

Dimensions 158 mm x 75 mm x 32 mm
Detector Type InGaAs
Wavelength Range 800 nm ~ 1700 nm
Low Battery Indicator Yes
Backlight Display Yes
Connector Type FC/SC/ST universal + RJ45
Storage Temperature -20C ~ +70C
Supported Fiber Types Single-mode and Multimode
Auto Power Off Yes
VFL Output Power 1 mW/10 mW
LAN Function RJ45 continuity test, wire map

Power meter+Vfl+Lan Tester 5103 model Product Specifications

Features 3-in-1 tester, Auto-off, Data hold, Backlight, Low battery indication
Color Blue & White
Test Range -70 dBm ~ +6 dBm
Port Size 2.5 mm universal and RJ45
Response Time <10 ms
Resolution 0.01 dB
Material Plastic
Power Supply Electric
Application Optical fiber and LAN network testing
Measuring Range -70 dBm ~ +6 dBm (OPM), 1 mW / 10 mW (VFL)
Usage Industrial
Machine Weight 185 g
Product Type Power meter+Vfl+Lan Tester 5103 model
Automation Grade Manual
Mounting Type Handheld
Operating Voltage 4.5V DC (3xAAA batteries)
Interface Type FC, SC, ST, RJ45 adaptable
Equipment Type Optical Power Meter, Visual Fault Locator, LAN Tester 3-in-1
Control Mode Manual
Temperature -10C ~ +60C operating
Humidity 0% ~ 70% RH non-condensing
Display Type LCD Backlit Display
Accuracy 0.2 dB

Dimensions 158 mm x 75 mm x 32 mm
Detector Type InGaAs
Wavelength Range 800 nm ~ 1700 nm
Low Battery Indicator Yes
Backlight Display Yes
Connector Type FC/SC/ST universal + RJ45
Storage Temperature -20C ~ +70C
Supported Fiber Types Single-mode and Multimode
Auto Power Off Yes
VFL Output Power 1 mW/10 mW
LAN Function RJ45 continuity test, wire map

Power meter+Vfl+Lan Tester 5103 model Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Capitalise on precision with the valiant Power Meter+VFL+LAN Tester 5103 model-a kingly choice for professionals requiring perfect optical fiber and network diagnostics. Equipped with an advanced InGaAs detector and a wavelength range of 800 nm ~ 1700 nm, this 3-in-1 equipment excels in power measurement, visual fault location, and LAN continuity tests. With universal FC/SC/ST and RJ45 connectors, robust build, backlit LCD, and comprehensive test ranges, procure reliable results for industrial optical fiber and LAN cable mapping. Shop now to elevate your testing efficiency!

Comprehensive Application & Usage Directions

The Power Meter+VFL+LAN Tester 5103 model is perfect for optical fiber power measuring, continuity verification, and LAN cable wire mapping. Simply connect via the universal FC/SC/ST or RJ45 ports, select the relevant test mode manually, and use the intuitive LCD backlit display for results. Its application spans across telecommunications, industrial networking, and IT infrastructure, ensuring accurate data collection for both single-mode and multi-mode fibers in various environmental conditions.

Delivery, Shipping Policy & Export Markets

Experience reliable transport services and secure shipping while ordering the Power Meter+VFL+LAN Tester 5103 model. Delivery time is streamlined for efficiency, with rates transparently communicated before purchase. Sample policies are available upon request for bulk buyers and distributors. Our main export markets include Asia, the Middle East, Europe, and Africa, serving both manufacturers and service providers globally with guaranteed safe packaging and prompt delivery through trusted logistic partners.

FAQ's of Power meter+Vfl+Lan Tester 5103 model:

Q: How does the Power Meter+VFL+LAN Tester 5103 model benefit industrial users?

A: This multifunctional tool efficiently conducts power level measurements, visual fault location, and LAN cable mapping, maximizing operational reliability for complex network infrastructures.

Q: What is the process for using the Power Meter+VFL+LAN Tester 5103 for cable testing?

A: Connect the device using the universal FC/SC/ST or RJ45 interface, select the desired operation mode, and view real-time results on the backlit LCD display. The tester works for both single-mode and multi-mode fibers.

Q: Where can this 3-in-1 tester be applied?

A: It is ideal for use in telecommunication centers, IT departments, industrial networks, laboratories, and anywhere optical fibers or LAN connectivity require testing and maintenance.

Q: When should the device be used for maintenance checks?

A: Routine or scheduled preventive maintenance of fiber optic and LAN networks is the best time to use the tester, ensuring uninterrupted performance and early fault detection.

Q: How accurate is the measurement with this tester?

A: With an accuracy of 0.2 dB and a resolution of 0.01 dB, the tester ensures dependable and precise results for critical network assessments.

Q: What are the available delivery and shipping options?

A: We offer secure shipping and fast delivery via reputed transport services, with rates and timelines provided before order confirmation. Export is available worldwide.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fiber Testing' category

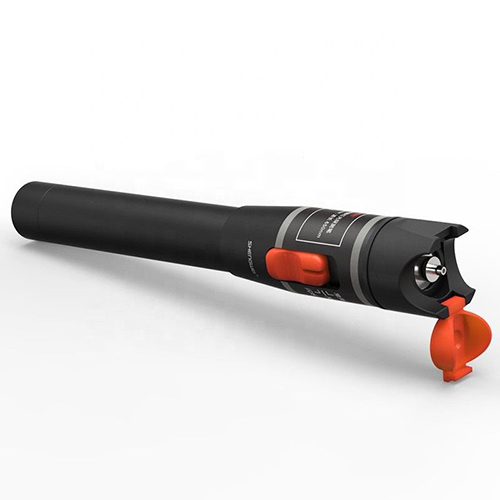

VFL 10 MW Price : 500 INR/Piece Minimum Order Quantity : 10 Usage : Industrial Product Type : VFL 10 MW Features : Microcomputer control, Easy operation, High precision Port Size : 10 mm Application : Tensile, compression, and bending test for materials Control Mode : Microcomputer control Accuracy : 1% Interface Type : USB/RS232 Measuring Range : 0.5 N to 10,000 N Machine Weight : 65 kg Automation Grade : Automatic Color : Black Response Time : Instantaneous Power Supply : 220V, 50Hz Material : Plastic Humidity : 20% ~ 80% RH Temperature : 15C ~ 35C Display Type : Digital display with PC interface Operating Voltage : 220V AC Mounting Type : Floor mounted Equipment Type : Tensile Testing Machine Resolution : 0.01 N Test Range : 0.5 N to 10,000 N Capacity : 10 kN Test Speed : 0.01 500 mm/min Test Stroke : 600 mm Test Width : 400 mm Frequency : 50 Hz Specimen Size : Up to 400 mm width Number of Specimens : Multiple (customizable)
