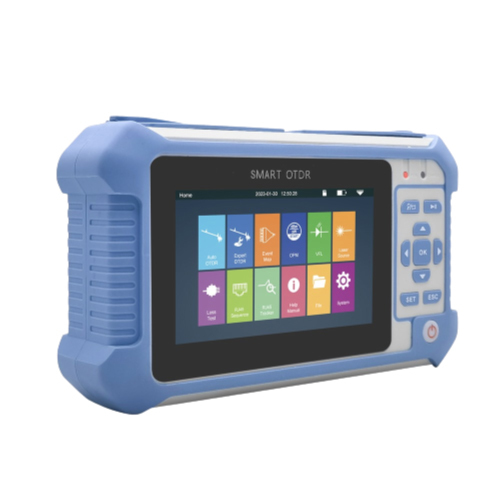

Testing Smart OTDR CT- 292

Name: Testing Smart OTDR CT- 292
Brand: FIBROS TECHNOLOGY
Price: 21000 INR
Availability: InStock

21000 INR/Piece

Get a Price/Quote

Product Details:

Application Fiber optic cable testing and troubleshooting
Port Size FC/PC, SC/PC Interchangeable
Interface Type USB, Mini-USB
Equipment Type Smart Optical Time Domain Reflectometer (OTDR)
Number of Specimens 1 (Fiber Under Test)
Specimen Size Fiber optic cable
Power Supply Electric
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Testing Smart OTDR CT- 292 Price And Quantity

Minimum Order Quantity 1 Piece
Price 21000 INR/Piece

Language Support English/Chinese selectable
Battery Life Up to 8 hours
Dynamic Range 28 dB @1310 nm, 26 dB @1550 nm
Visual Fault Locator Output Power 1 mW
Pulse Width 3 ns ~ 10 s
Wavelength 1310/1550 nm dual wavelength
Data Storage Internal memory (up to 1000 test records), USB external storage
Laser Safety Level Class 1 (IEC 60825-1)
Software Upgrade USB Upgrade
Event Dead Zone 1.5 m

Testing Smart OTDR CT- 292 Product Specifications

Test Width 110 mm
Usage Laboratory
Test Stroke 2m, 5m, 10m, 20m, 40m, 80m, 120m optional
Mounting Type Handheld
Features Lightweight, handheld, touch screen, auto/manual mode, rechargeable battery, interchangeable port, visual fault locator
Material Plastic
Temperature -10C ~ +50C (Operating), -20C~ +60C (Storage)
Product Type Smart OTDR CT- 292
Specimen Size Fiber optic cable
Power Supply Electric
Color Blue
Operating Voltage DC 9V (with AC Adapter provided)
Resolution 0.05 m
Control Mode Auto/Manual
Display Type 5-inch color LCD touchscreen
Humidity 0~95% (non-condensing)
Test Range up to 120 km
Response Time Real-time
Automation Grade Automatic / Manual
Test Speed 5000~15000 events/second
Measuring Range up to 120 km
Accuracy (1m + sampling interval + 0.005% x distance)
Machine Weight About 1.2 kg
Port Size FC/PC, SC/PC Interchangeable
Interface Type USB, Mini-USB
Application Fiber optic cable testing and troubleshooting
Equipment Type Smart Optical Time Domain Reflectometer (OTDR)
Number of Specimens 1 (Fiber Under Test)

Language Support English/Chinese selectable
Battery Life Up to 8 hours
Dynamic Range 28 dB @1310 nm, 26 dB @1550 nm
Visual Fault Locator Output Power 1 mW
Pulse Width 3 ns ~ 10 s
Wavelength 1310/1550 nm dual wavelength
Data Storage Internal memory (up to 1000 test records), USB external storage
Laser Safety Level Class 1 (IEC 60825-1)
Software Upgrade USB Upgrade
Event Dead Zone 1.5 m

Testing Smart OTDR CT- 292 Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 7 Days

Product Description

Experience the latest in fiber optic testing technology with the Smart OTDR CT-292, a must-have paragon for any modern laboratory or field engineer. This towering device boasts exceptional accuracy across dual wavelengths (1310/1550 nm), featuring a dynamic range of up to 28 dB and real-time response on a 5-inch color LCD touchscreen. With a trendsetting design, its lightweight handheld build, auto/manual modes, and extensive storage capacity ensure effortless troubleshooting and network analysis. Compatible with FC/PC and SC/PC interfaces, this trending OTDR delivers unmatched performance over a test range up to 120 km.

Versatile Applications for Reliable Results

The Smart OTDR CT-292 stands out in both laboratory environments and field operations, offering exceptional performance in testing and troubleshooting fiber optic networks. It is widely used for comprehensive fiber analysis, fault location, and loss measurement, making it indispensable for maintenance teams and service providers. Application is straightforward-simply connect the OTDR to the fiber optic cable and select the desired test parameters for precise diagnostics and rapid assessments.

Streamlined Transactions and Certified Assurance

Order completion for the Smart OTDR CT-292 is smooth, with secure payment terms tailored to buyer requirements. Packing & dispatch are handled with care to ensure safe arrival at your location, typically via major FOB ports in India. Each unit is certified according to leading industry standards, delivering peace of mind for reliability and quality. From processing to delivery, every step is managed for prompt and efficient order fulfillment.

FAQ's of Smart OTDR CT- 292:

Q: How does the Smart OTDR CT-292 benefit fiber optic network troubleshooting?

A: The Smart OTDR CT-292 offers accurate, real-time diagnostics, allowing users to quickly locate faults and measure losses in fiber optic cables. Its dual wavelength capability and high dynamic range make it ideal for efficient network maintenance and troubleshooting.

Q: What applications is the Smart OTDR CT-292 suited for?

A: This device is suited for laboratory analysis, field testing, and servicing of fiber optic networks. It is highly effective for detecting breaks, splices, and other network issues, supporting both installation and maintenance tasks.

Q: Where can I use the Smart OTDR CT-292?

A: You can use the Smart OTDR CT-292 in telecommunications labs, onsite installations, and throughout network maintenance environments-anywhere fiber optic cables need precise evaluation and troubleshooting.

Q: What is the process for updating the OTDR's software?

A: Software upgrades are conveniently managed via USB. Users simply connect the device to a computer with the latest software files, following the easy prompts for a seamless update process.

Q: How is the Smart OTDR CT-292 powered and how long does it last on one charge?

A: Powered by a rechargeable battery with up to 8 hours of runtime, the OTDR also operates via an AC adapter. This ensures consistent, reliable use during long testing sessions.
