Visual Fault Locator 20MW

Name: Visual Fault Locator 20MW
Brand: FIBROS TECHNOLOGY
Price: 800 INR
Availability: InStock

800 INR/Piece

Get a Price/Quote

Product Details:

Product Type Visual Fault Locator 20MW
Accuracy 5%
Response Time Instant
Interface Type 2.5 mm FC/SC/ST universal
Material Plastic
Test Range Up to 15 km
Display Type LED (Power Indication)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Visual Fault Locator 20MW Price And Quantity

Price 800 INR/Piece
Minimum Order Quantity 10 Piece

Dimensions 175 mm x 26 mm
Laser Type Class II
Laser Wavelength 650 nm 10 nm
Storage Temperature -20C to +70C
Battery Life 40 hours (Continuous use)
Output Connector Universal 2.5 mm (FC, SC, ST tip included)
Body Material Aluminum Alloy
Emission Mode CW/Pulse (2~3 Hz)

Visual Fault Locator 20MW Product Specifications

Operating Voltage 3V
Capacity 20mW
Mounting Type Handheld
Automation Grade Manual
Measuring Range Up to 15 km
Usage Laboratory
Temperature -10C to +60C
Port Size 2.5 mm universal adapter
Application Fiber optic cable testing, fault location, break detection
Power Supply Electric
Features Portable, Compact design, Continuous & Pulse mode, Low battery indication
Humidity 0-70% RH
Control Mode Manual
Equipment Type Visual Fault Locator
Display Type LED (Power Indication)
Color Black
Material Plastic
Machine Weight 120 g
Test Range Up to 15 km
Response Time Instant
Interface Type 2.5 mm FC/SC/ST universal
Product Type Visual Fault Locator 20MW
Accuracy 5%

Dimensions 175 mm x 26 mm
Laser Type Class II
Laser Wavelength 650 nm 10 nm
Storage Temperature -20C to +70C
Battery Life 40 hours (Continuous use)
Output Connector Universal 2.5 mm (FC, SC, ST tip included)
Body Material Aluminum Alloy
Emission Mode CW/Pulse (2~3 Hz)

Visual Fault Locator 20MW Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 7 Days

Product Description

Grab this Visual Fault Locator 20MW at a special rate for first-class performance in fiber optic testing. This redoubtable instrument, featuring a sublime 650 nm 10 nm Class II laser, can locate faults up to 15 km with 5% accuracy. Its robust aluminum alloy build, universal 2.5 mm connector (FC, SC, ST), and 40-hour battery lifespan ensure reliability and convenience. The intuitive LED power display and instant response time deliver exceptional usability, making it ideal for laboratories and field technicians seeking a superior equipment choice. Offer available from a trusted manufacturer and supplier in India.

Extra Features & Specific Usage of Visual Fault Locator 20MW

Experience the convenience of this handheld Visual Fault Locator, which offers both continuous and pulse modes, a low battery indicator, and a compact design for portability. Specifically engineered for laboratory applications and precise fiber optic cable fault location, this equipment supports a universal 2.5 mm adapter, ensuring compatibility with FC, SC, and ST connectors. Its instant LED power display and lightweight structure make it essential for break detection, cable testing, and fault pinpointing in optical fibers.

Delivery, Domestic & Export Markets for the Visual Fault Locator 20MW

Shipped quickly to your location, this Visual Fault Locator 20MW is available for prompt transportation across main domestic markets throughout India. Freight solutions ensure safe and efficient delivery to various export markets, meeting global quality standards. Whether you're sourcing for local laboratories or international projects, our streamlined logistics process guarantees that your equipment arrives reliably and in excellent condition. Trust in our dedicated support for smooth order fulfillment and competitive shipping options.

FAQ's of Visual Fault Locator 20MW:

Q: How does the Visual Fault Locator 20MW operate?

A: The Visual Fault Locator 20MW works by emitting a visible laser light at 650 nm through fiber optic cables, enabling users to visually detect breaks or faults up to 15 km in length. The device supports both continuous and pulse emission modes controlled manually.

Q: What connectors are compatible with this device?

A: This Visual Fault Locator features a universal 2.5 mm adapter, making it compatible with FC, SC, and ST connectors, providing flexibility for various fiber optic cables and testing scenarios.

Q: When should I use this locator in fiber maintenance?

A: Utilize the Visual Fault Locator during routine cable inspections, troubleshooting, installation verification, or whenever you suspect a fault in a fiber line-especially prior to or after network deployments and repairs.

Q: Where can this equipment be most effectively applied?

A: The locator is ideal for laboratory use, on-site maintenance, and telecommunications setups. It supports precise location of faults and bends in singlemode and multimode fiber cables in both indoor and outdoor environments.

Q: What are the main benefits of using this Visual Fault Locator?

A: Key benefits include a lightweight, portable design; reliable and accurate fault pinpointing up to 15 km; long battery life (up to 40 hours of continuous use); compatibility with multiple connectors; and easy-to-read LED power indication.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fiber Testing' category

Visual Fault Locator 30MW Price : 1200 INR/Piece Minimum Order Quantity : 10 Product Type : Visual Fault Locator 30MW Accuracy : Response Time : Interface Type : 2.5mm universal connector Material : Plastic Machine Weight : Test Range : up to 15 km (typical single mode fiber) Color : Black Display Type : LED power indicator Power Supply : Electric Humidity : 0% 70% RH (noncondensing) Control Mode : Manual Features : Pentype design, continuous or pulsed operation, long battery life Equipment Type : Visual Fault Locator Port Size : 2.5mm universal adapter (also fits 1.25mm with additional accessory) Application : Fiber optic cable testing, locating faults, identifying fiber breaks, bending or cracks Automation Grade : Manual Resolution : Measuring Range : up to 15 km Temperature : 10C to +60C (operating) Usage : Industrial Mounting Type : Handheld Operating Voltage : 3V DC Frequency : CW and 2~3 Hz modulation Test Width : Number of Specimens : Test Stroke : Test Speed : Capacity : 30mW output power Max Height : Specimen Size :

Send Inquiry

Devisor OTDR 3100A Price : 80000 INR/Piece Minimum Order Quantity : 1 Product Type : Devisor OTDR 3100A Accuracy : (1 m + measurement5105 + sampling resolution) Response Time : <15 sec for auto test Interface Type : USB, SD card slot, RJ45 Material : Plastic Machine Weight : 2.2 kg Test Range : Up to 80 km Color : White And Blue Display Type : 7inch TFT LCD touch screen Power Supply : Electic Humidity : 0~95% (noncondensing) Control Mode : Touchscreen/Hard Button Features : Auto/Manual/Realtime Test Mode, Visual Fault Locator (VFL), Event Map, Data Storage, Touch Screen Operation Equipment Type : Handheld OTDR Port Size : FC/UPC (Standard), SC/ST/LC (Optional) Application : Fiber Network Testing, FTTH Deployment, Line Maintenance Automation Grade : Semiautomatic Resolution : 0.05~16 m Measuring Range : 1.6/5/10/20/40/80 km Temperature : 10C~+50C (Operating), 20C~+70C (Storage) Usage : Laboratory Mounting Type : Handheld Operating Voltage : 7.4 V DC (battery), 100240 V AC (adapter) Frequency : 1310 nm / 1550 nm / 1625 nm (typical) Test Width : 0.8 mtr(Max) Number of Specimens : Single/Multiple fiber Test Stroke : 1 m to 80 km Test Speed : Real Time Acquisition Capacity : Up to 40,000 data results Specimen Size : Standard Fiber

Send Inquiry

Power Meter 840 Model Price : 2000 INR/Piece Minimum Order Quantity : 1 Product Type : Power Meter 840 Model Accuracy : 0.5% Response Time : 2 seconds Interface Type : Screw terminal block / Phono sockets Material : Plastic Machine Weight : 2.5 kg Test Range : 0~9999 kW Color : Blue Display Type : LCD Digital Display Power Supply : Electric Humidity : 80% RH Control Mode : Digital / Automatic Features : Compact design, easy operation, wide measuring range Equipment Type : Digital Power Meter Port Size : Standard input terminals Application : Measurement of voltage, current, power Automation Grade : Automatic Resolution : 0.01 Measuring Range : Voltage: 80~300V, Current: 0.01~20A Temperature : 0C~40C Usage : Industrial Mounting Type : Panel mount Operating Voltage : 100~240V AC Frequency : 45Hz~65Hz Test Width : Standard single input measurement Number of Specimens : Single circuit Test Stroke : N/A (electronic meter) Test Speed : Realtime detection Capacity : Max 20A continuous Max Height : 120 mm

Send Inquiry

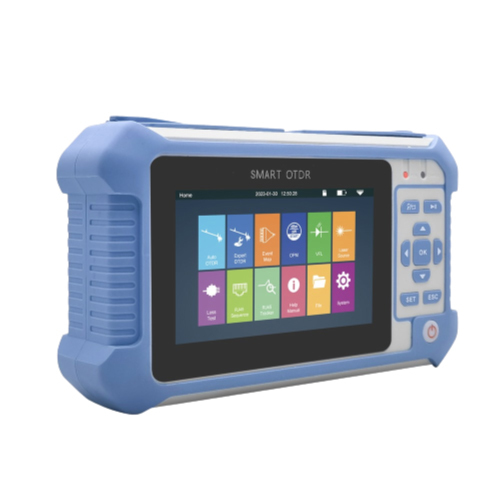

Smart OTDR CT- 292 Price : 21000 INR/Piece Minimum Order Quantity : 1 Product Type : Smart OTDR CT 292 Accuracy : 1 m Response Time : <1 second for event Interface Type : USB, miniUSB Material : Plastic Machine Weight : 4.2 kg Test Range : Dynamic range up to 32 dB Color : Blue Display Type : Color TFT LCD Power Supply : AC 100~240V, 50/60Hz Humidity : 0% ~ 95% RH (noncondensing) Control Mode : Touch Screen / Keypad Features : Auto/Manual Test Mode, VFL, Power Meter, Event Map Equipment Type : Smart OTDR Port Size : SC/FC interchangeable adapters Application : Fiber Optical Cable Fault Detection & Analysis Automation Grade : Manual / Semiautomatic Resolution : 0.05 m Measuring Range : Up to 160 km Temperature : 10C ~ +50C Usage : Industrial Mounting Type : Handheld Operating Voltage : DC 7.4V (lithium battery) Test Width : 514 nm Number of Specimens : 1 Test Stroke : 1.6 m Test Speed : 0.8 m/s Capacity : Internal memory stores 1000+ traces Specimen Size : Standard singlemode/multimode fiber
