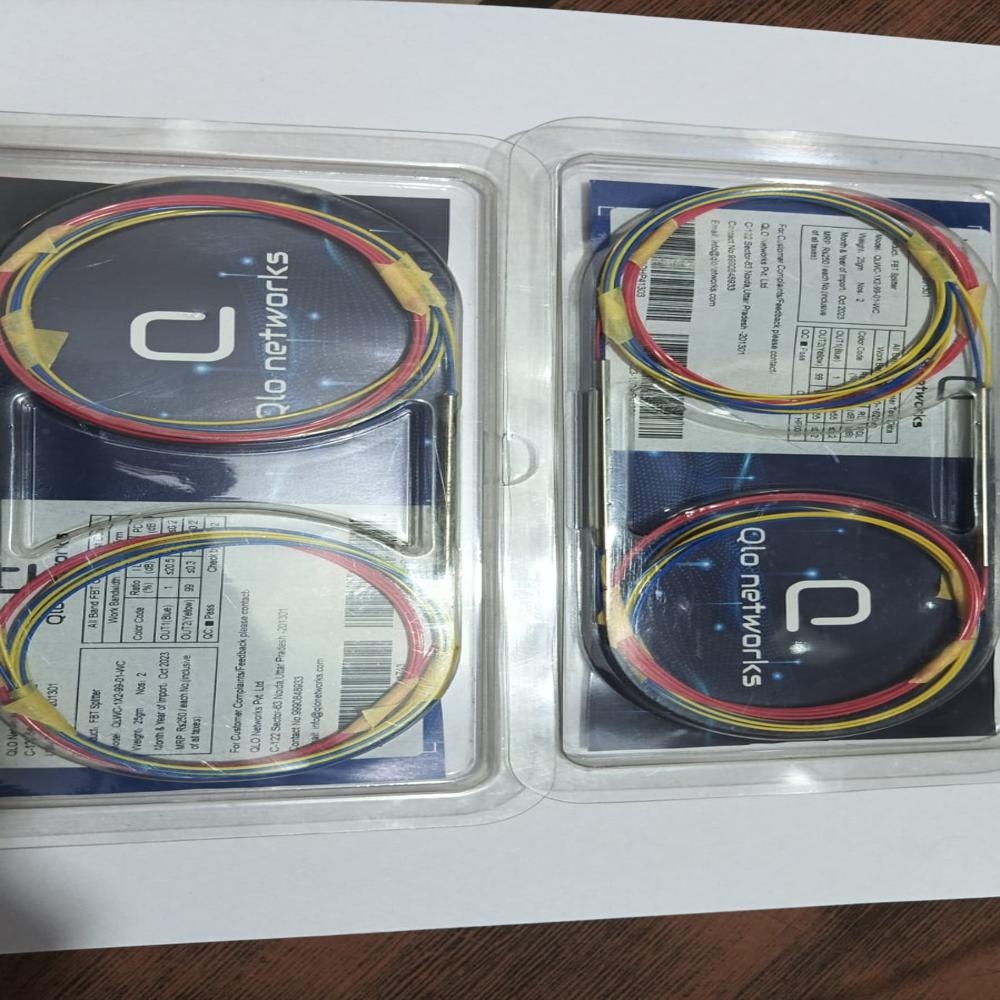

1x8 PLC Splitter

1x8 PLC Splitter Product Specifications

• Material Fiber
• Shelf Life 10+ years
• Frequency N/A (Passive device)
• Model 1x8 PLC Splitter
• Interface Type Optical Fiber SC/UPC, SC/APC, or as required
• Power Supply Passive device; no power supply required
• Connectivity Type LC/SC/FC/ST optional connectors
• Weight Approx. 60 grams
• Application fiber cable internet conny
• Size 1x8
• Range 1260-1650 nm wavelength
• Coverage Area Suitable for indoor/outdoor fiber optic networks
• Operating Temperature -40C to +85C
• Dimension (L*W*H) 100 mm x 80 mm x 10 mm (module type); Custom sizes available
• Product Type PLC Splitter
• Features Low insertion loss, High uniformity, Compact design, Wide operating wavelength, Good environmental stability
• Mounting Type Rack Mount, Mini Module, Tray or Insert Cassette
• Capacity 8 output channels

• Fiber Type G657A1 or G652D
• Storage Temperature -40C to +85C
• Input Fiber Diameter 250m, 900m, 2.0mm, or 3.0mm
• Insertion Loss 10.5 dB
• Directivity 55 dB
• Polarization Dependent Loss 0.2 dB
• Return Loss 55 dB (UPC), 50 dB (APC)
• Uniformity 0.8 dB
• Package Type Mini Module, ABS Box, Rack Mounted, or Cassette
• Operating Wavelength 1260nm ~ 1650nm
